1.6mm TIG Gas Lens Collet Body SUPER STUBBY KIT WP17|18|26
$43.99
Product Introduction
Make TIG torch shorter and narrower for hard-to-reach positions. Allows using shorter 9/20 series consumables (2/3 size of 17/18/26 series). Cost-saving kit vs individual parts ($110+ value).
Key Specifications
| Compatibility | WP17|18|26 TIG Torches |
| Collet Size | 1.6mm (10N23S) |
| Collet Body | 17CB20 (2pcs) |
| Insulators | 18CG20 (2pcs) |
| Cup Sizes | #4-#9 (13N08 to 13N13, 2pcs each) |
1.6mm TIG Gas Lens Collet Body SUPER STUBBY KIT – WP17|18|26
Struggling with hard-to-reach welding positions? Our SUPER STUBBY KIT transforms your TIG torch into a precision tool for tight spaces, saving you time and boosting efficiency. Don’t miss out on this cost-effective solution¡ªread on to discover why professionals trust our kit!
Kit Components & Key Features
| Component | Description | Core Benefit |
|---|---|---|
| 2 x 18CG20 Insulators | Heat-resistant insulation | Enhanced durability during high-temperature welding |

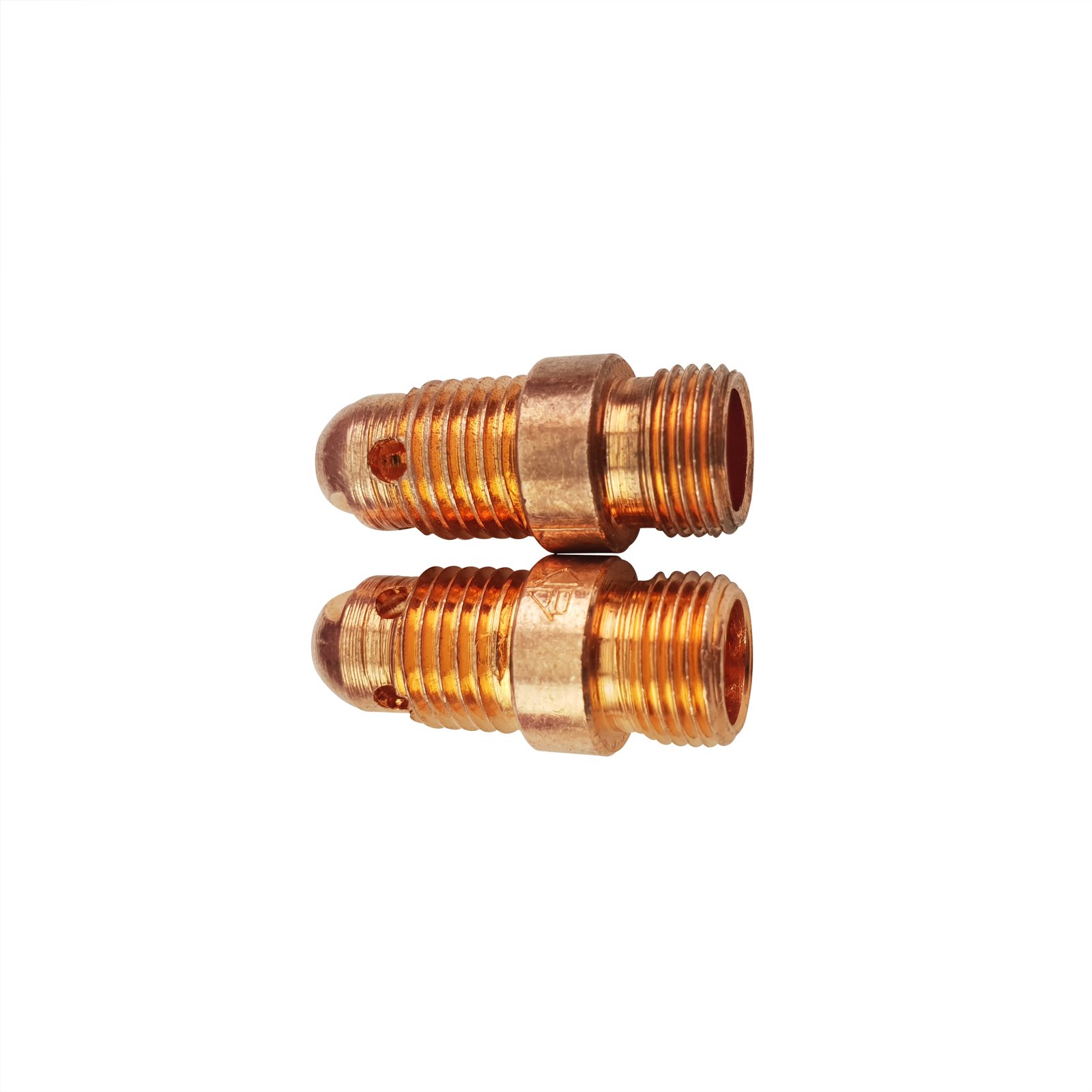

| 2 x 17CB20 Collet Body | Shortened design | Reduces torch length for narrow workspaces |

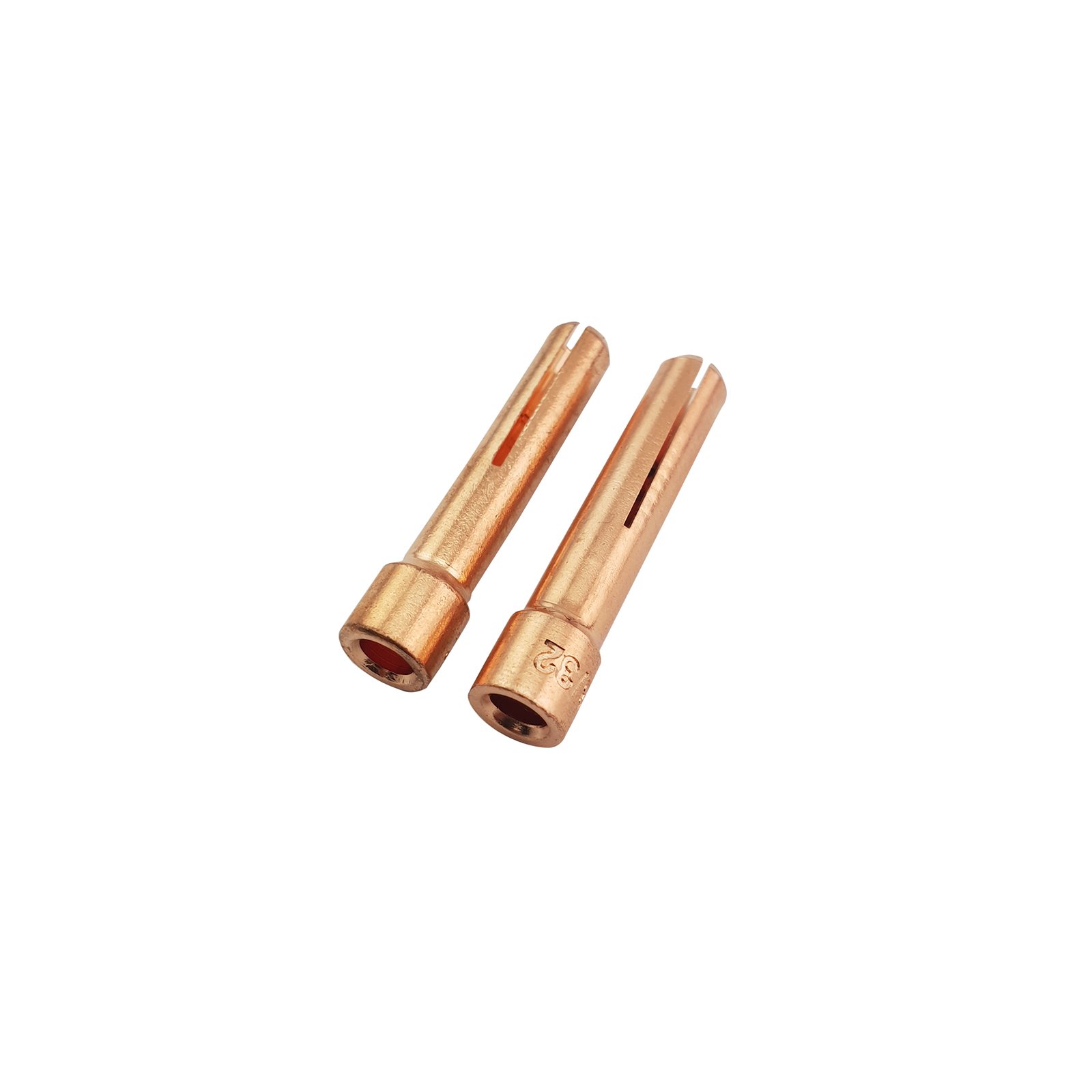

| 2 x 10N23S 1.6mm Collets | Precision grip for 1.6mm electrodes | Stable arc performance and minimal spatter |

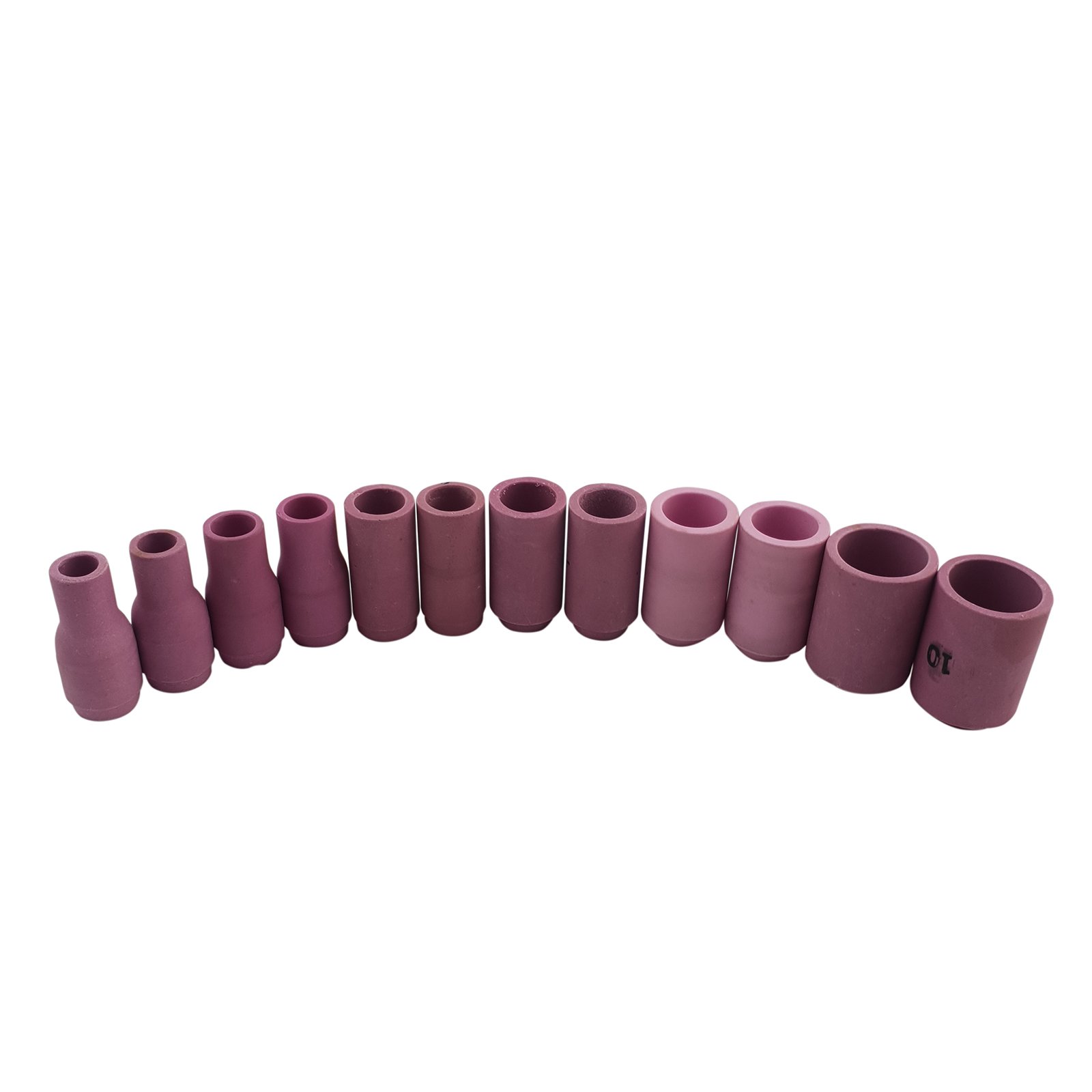

| 2 x 13N08 #4 Cups | Small-diameter gas lens cup | Ideal for intricate, detailed welds |
| 2 x 13N09 #5 Cups | Standard gas coverage | Versatile for general welding tasks |
| 2 x 13N10 #6 Cups | Medium gas diffusion | Balanced protection for medium-sized joints |
| 2 x 13N11 #7 Cups | Wider gas coverage | Suitable for larger workpieces |
| 2 x 13N12 #8 Cups | Extended gas shield | Prevents contamination in drafty environments |
| 2 x 13N13 #9 Cups | Maximum gas protection | Optimal for high-purity welding applications |
Product Specifications
- Compatibility: WP17, WP18, WP26 TIG torches
- Electrode Size: 1.6mm
- Consumable Series: 9 & 20 (2/3 smaller than 17/18/26 series)
- Kit Value: Over $110 if purchased individually
Applications
Perfect for automotive repair, aerospace components, pipe welding, and any project requiring access to tight corners or confined spaces. The compact design excels in HVAC, marine, and industrial manufacturing where precision is critical.
Core Performance
- Shorter Torch Profile: Navigate narrow gaps with ease
- Enhanced Gas Coverage: Minimizes oxidation and ensures clean welds
- Cost Savings: All-in-one kit reduces individual part purchases by 30%
Quality Assurance
Manufactured by China¡¯s leading welding equipment producer, each component undergoes rigorous testing for heat resistance, dimensional accuracy, and durability. Our kits meet international welding standards for consistent performance.
Why Choose Our Kit?
Unlike generic kits, our SUPER STUBBY KIT combines 9-20 series consumables in one package, eliminating the need for multiple purchases. The 17CB20 collet body¡¯s innovative design allows seamless use of shorter, more maneuverable parts¡ªgiving you an edge in precision work.
FAQ
- Q: Will this fit my WP18 torch?
A: Yes, compatible with WP17, WP18, and WP26 models. - Q: Can I use 2.4mm electrodes with this kit?
A: No, this kit is designed for 1.6mm electrodes only. - Q: How many cups are included?
A: 2 each of #4 to #9 cups (6 sizes total).
Ready to upgrade your TIG welding setup? Contact us now for bulk pricing or technical support! Our team is here to help you optimize your workflow.
